Description

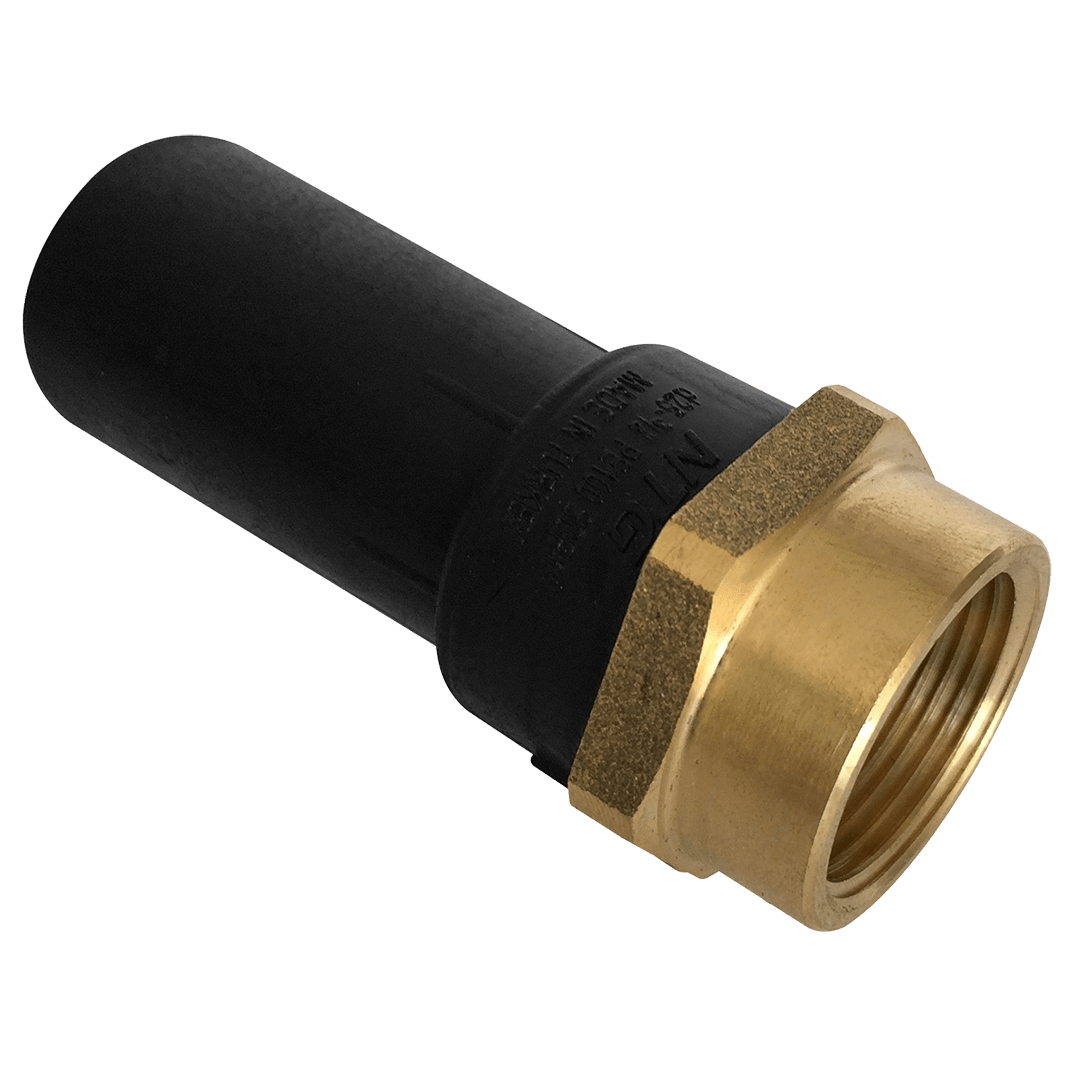

The EF Brass Transition Adaptor – Female is commonly used to connect various types of metallic pipes to Polyethylene (PE) Pipe systrems. Comprising of a brass female thread with a PE spigot adaptor that is used to join PE pipe or fittings to a threaded connection.
The EF Brass Transition Adaptor – Female is available in sizes from 20mm x 1/2″ – 125mm x 4″.
Materials and General Specifications
| Item | Specifications |
| Standards | AS/NZS 4129 | MS58 |
| Materials | Polyethelyne (PE) 100 | Brass |
| Pressure Rating | PN16, Water | PN10, Gas |
| SDR | 11 |
| Fitting Details | Female Thread | Long Spigot | Injection Moulded |
| Size | Code |
| 20mm x 1/2" | EFTAF02012 |
| 25mm x 3/4" | EFTAF02534 |
| 32mm x 1" | EFTAF0321 |
| 40mm x 1 1/4" | EFTAF040114 |
| 50mm x 1 1/2" | EFTAF050112 |
| 63mm x 2" | EFTAF0632 |
| 75mm x 2½" | EFTAF075212 |
| 90mm x 3" | EFTAF0903 |
| 110mm x 4" | EFTAF1104 |
| 125mm x 4" | EFTAF1254 |
The EF Brass Transition Adaptor – Female is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
