Description

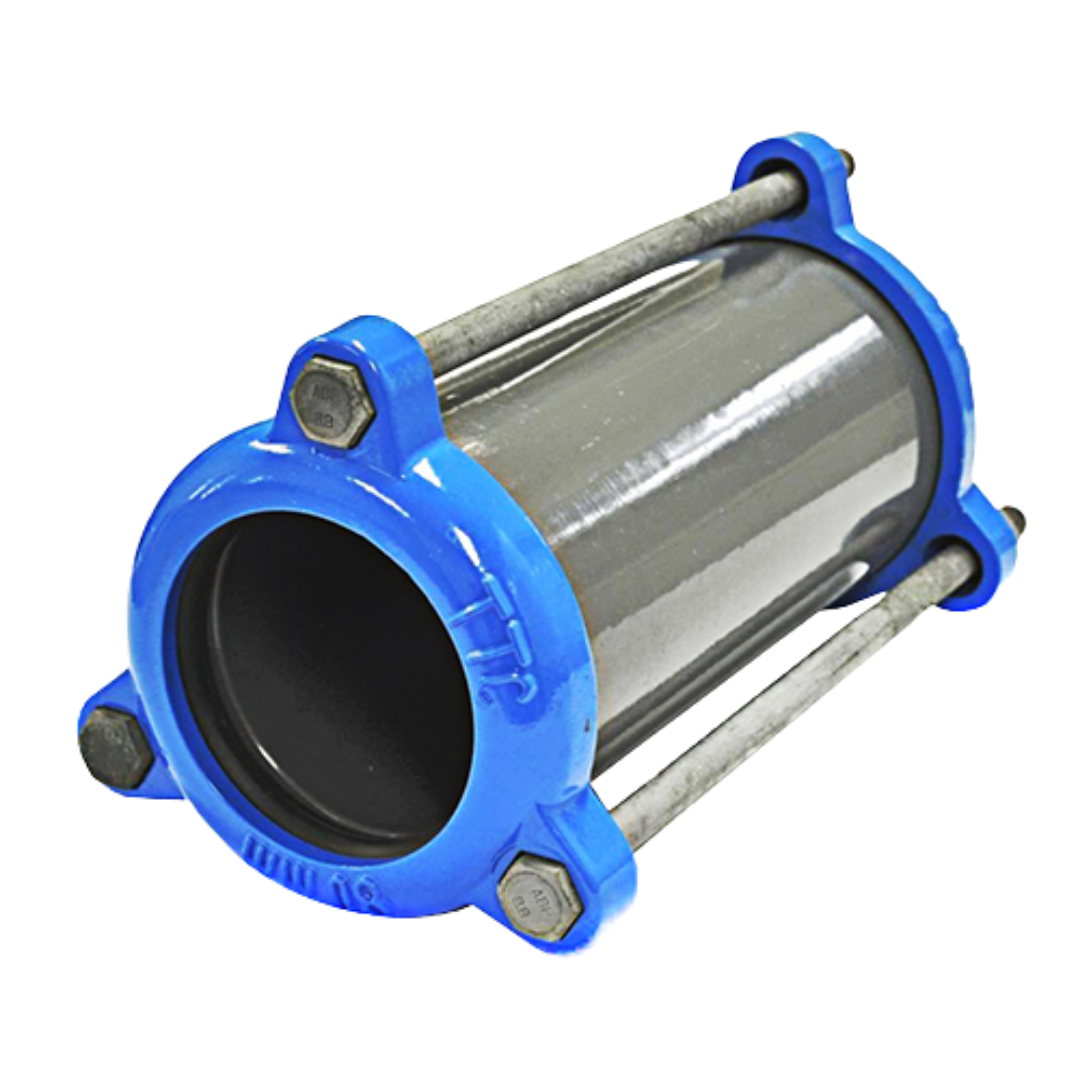

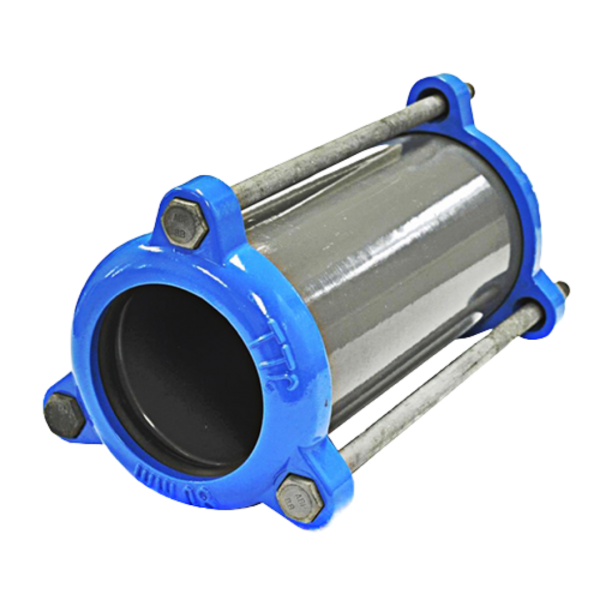

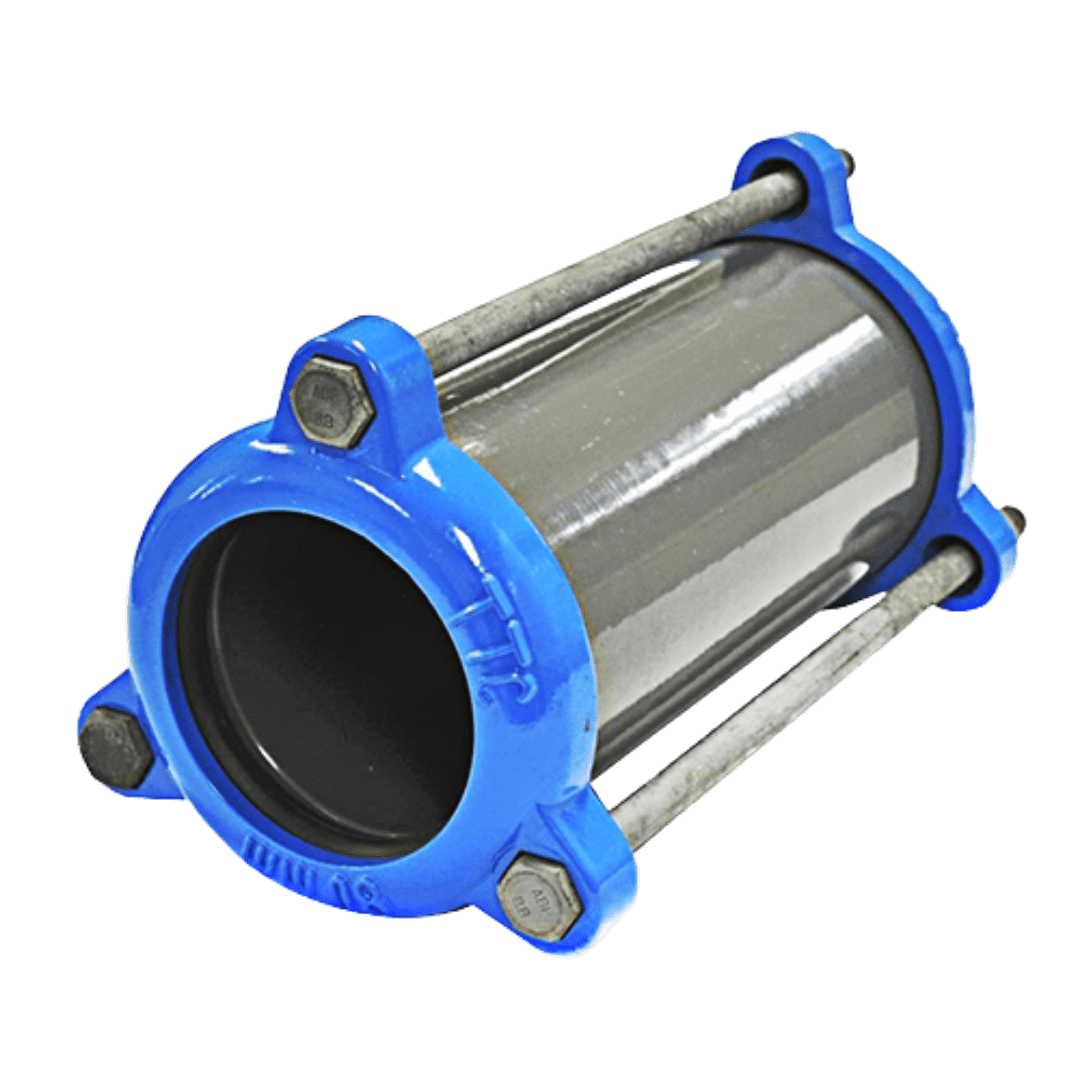

The Gibault Joint is a high pressure fitting that enables you to connect pipe or fittings of the same diameter, predominately used for pipe repairs of larger sized pipe.
The Gibault Joint varies in sizes from 80mm – 200mm.
Download the Technical Data Sheet
| Gibault Joint Size | Ctn Qty | Code |
| 80mm | 6 | TGJ080 |
| 100mm | 6 | TGJ100 |
| 150mm | 6 | TGJ150 |
| 200mm | 4 | TGJ200 |
| Sealing Rings Size | Ctn Qty | Code |
| 80mm | 50 | TGOR080 |
| 100mm | 50 | TGOR100 |
| 150mm | 50 | TGOR150 |
| 200mm | 50 | TGOR200 |
Materials and Specifications
| Item | Specifications |
| Aluminium Rings | BS401 Aluminium Alloy |
| Barrel | ABS |
| Nuts & Bolts | Hot Dipped Galvanised (SS available on request) |
| Sealing Rings | EPDM |
| Coating | Fusion Bonded Epoxy |
| Pressure Rating | 150 Psi |
The Gibault Joint is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
