Description

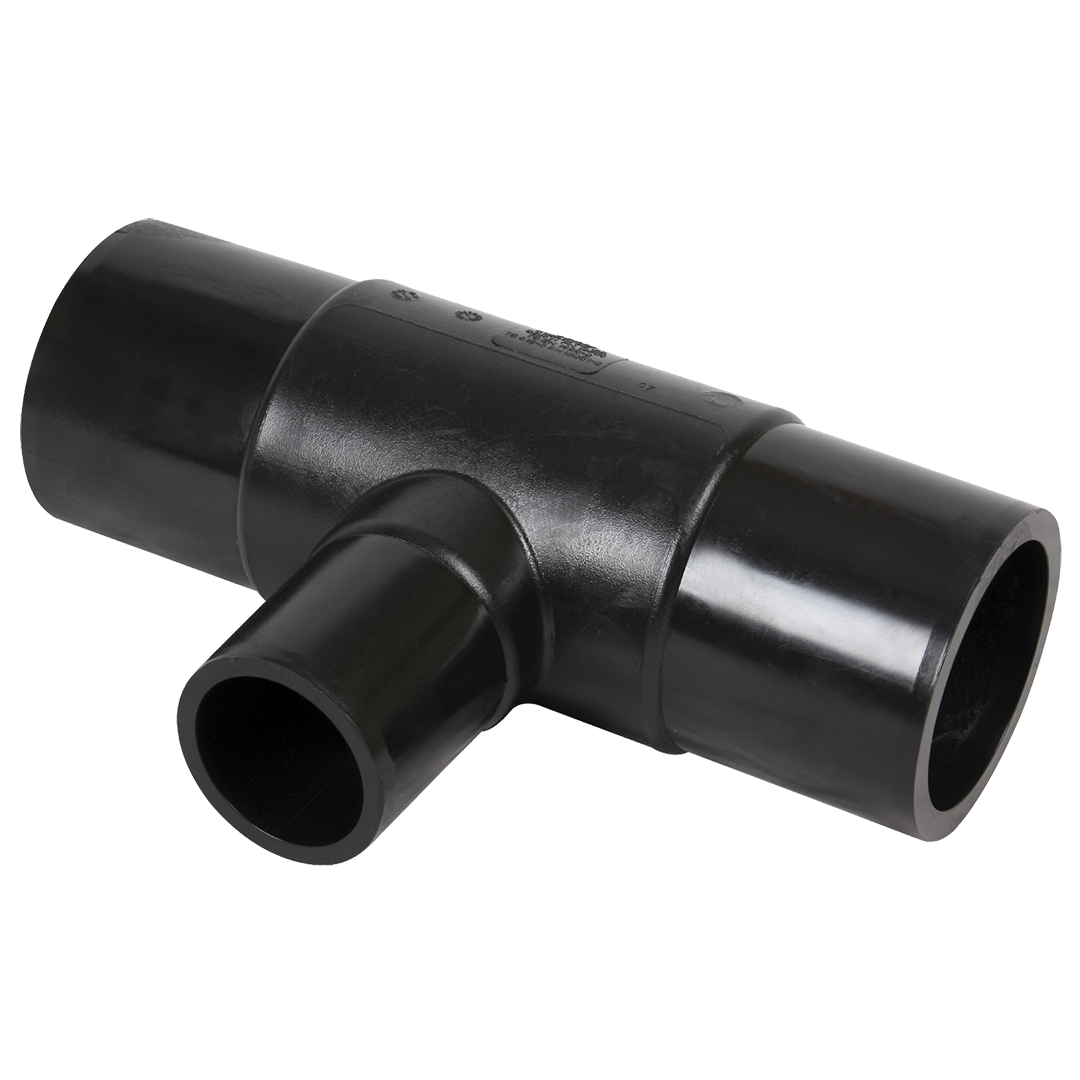

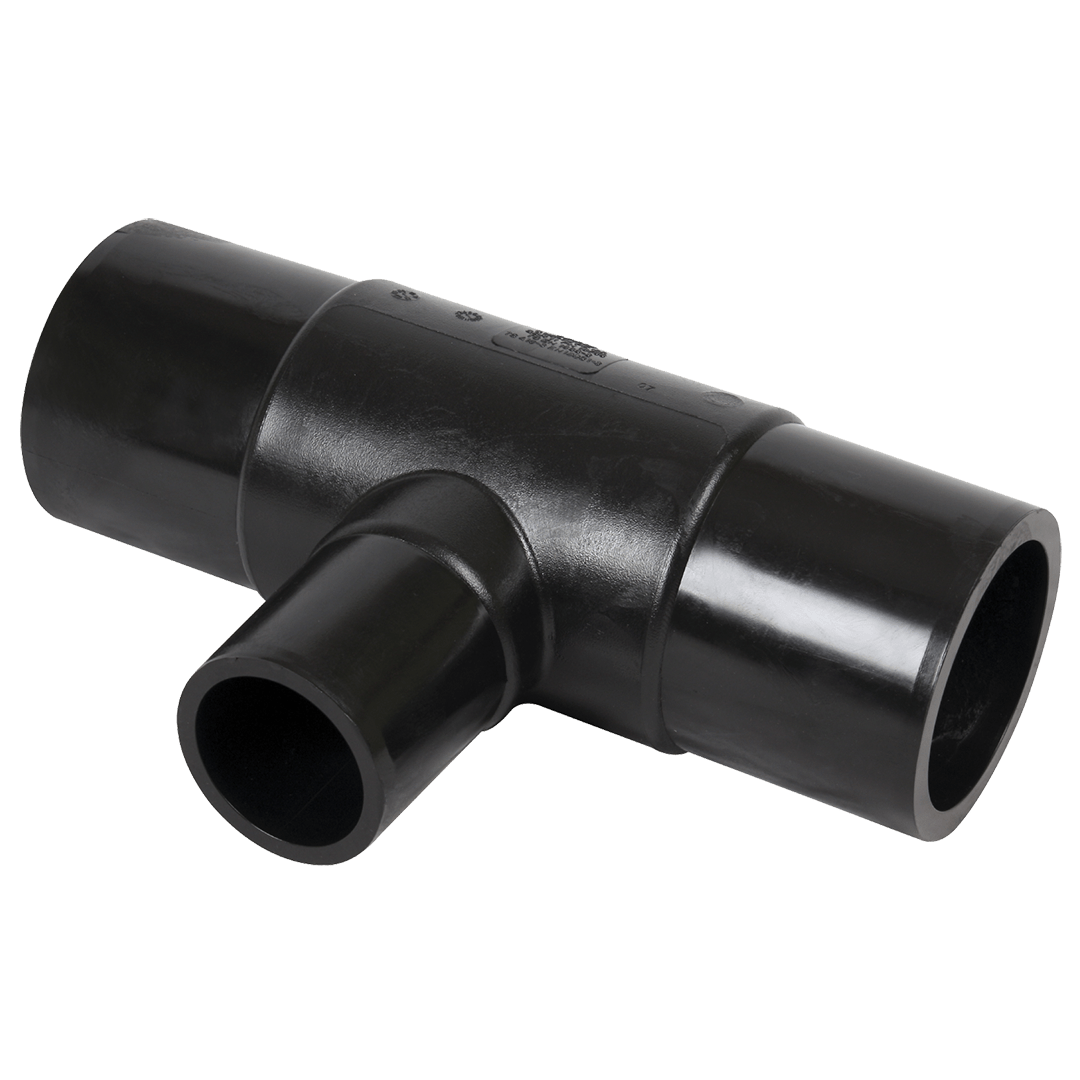

The Reducing Tee Long – SDR17 is a high pressure fitting that is widely used in various applications such as potable water distribution, gas distribution, irrigation, agriculture, industrial and mining, force mains and other critical applications where a tough, ductile material is needed to ensure long term performance. The Reducing Tee is designed to reduce down in size from the branch of the Tee and is predominately used to change the direction of the pipe.
The Reducing Tee Long – SDR17 varies in sizes from 90mm x 63mm – 315mm x 225mm.
Download the Technical Data Sheet
| Size | Code |
| 63mm x 50mm | BWTRL1706350 |
| 75mm x 50mm | BWTRL1707550 |
| 75mm x 63mm | BWTRL1707563 |
| 90mm x 50mm | BWTRL1709050 |
| 90mm x 63mm | BWTRL179063 |
| 90mm x 75mm | BWTRL1709075 |
| 110mm x 63mm | BWTRL1711063 |
| 110mm x 75mm | BWTRL1711075 |
| 110mm x 90mm | BWTRL1711090 |
| 125mm x 63mm | BWTRL1712563 |
| 125mm x 90mm | BWTRL1712590 |
| 125mm x 110mm | BWTRL17125110 |
| 140mm x 90mm | BWTRL1714090 |
| 140mm x 110mm | BWTRL17140110 |
| 140 x 125mm | BWTRL17140125 |
| 160mm x 63mm | BWTRL1716063 |
| 160mm x 75mm | BWTRL1716075 |
| 160mm x 90mm | BWTRL1716090 |
| 160mm x 110mm | BWTRL17160110 |
| 160mm x 125mm | BWTRL17160125 |
| 180mm x 90mm | BWTRL1718090 |
| 180mm x 110mm | BWTRL17180110 |
| 180mm x 125mm | BWTRL17180125 |
| 180mm x 160mm | BWTRL17180160 |
| 200mm x 63mm | BWTRL1720063 |
| 200mm x 90mm | BWTRL1720090 |
| 200mm x 110mm | BWTRL17200110 |
| 200mm x 125mm | BWTRL17200125 |
| 200mm x 160mm | BWTRL17200160 |
| 225mm x 75mm | BWTRL1722575 |
| 225mm x 90mm | BWTRL1722590 |
| 225mm x 110mm | BWTRL17225110 |
| 225mm x 125mm | BWTRL17225125 |
| 225mm x 160mm | BWTRL17225160 |
| 225mm x 180mm | BWTRL17225180 |
| 250mm x 90mm | BWTRL1725090 |
| 250mm x 110mm | BWTRL17250110 |
| 250mm x 125mm | BWTRL17250125 |
| 250mm x 160mm | BWTRL17250160 |
| 250mm x 200mm | BWTRL17250200 |
| 250mm x 225mm | BWTRL17250225 |
| 280mm x 110mm | BWTRL17280110 |
| 280mm x 160mm | BWTRL17280160 |
| 280mm x 200mm | BWTRL17280200 |
| 280mm x 225mm | BWTRL17280225 |
| 280mm x 250mm | BWTRL17280250 |
| 315mm x 90mm | BWTRL1731590 |
| 315mm x 110mm | BWTRL17315110 |
| 315mm x 160mm | BWTRL17315160 |
| 315mm x 180mm | BWTRL17315180 |
| 315mm x 200mm | BWTRL17315200 |
| 315mm x 225mm | BWTRL17315225 |
| 315mm x 250mm | BWTRL17315250 |
The Reducing Tee Long SDR17 is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
