Description

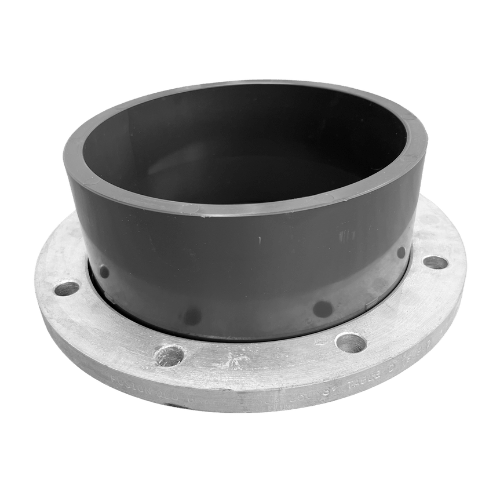

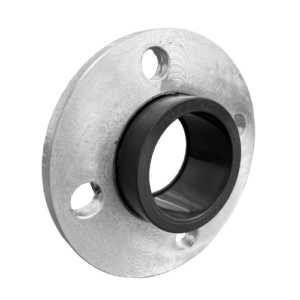

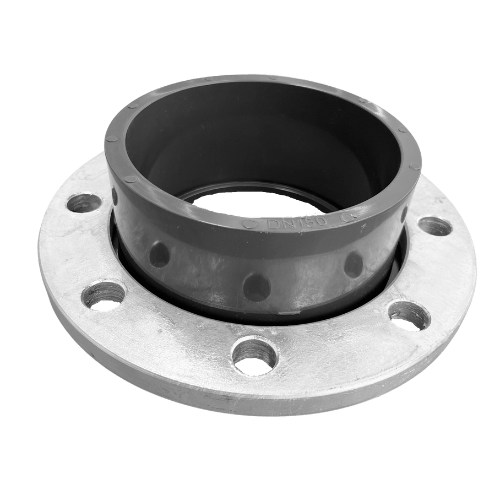

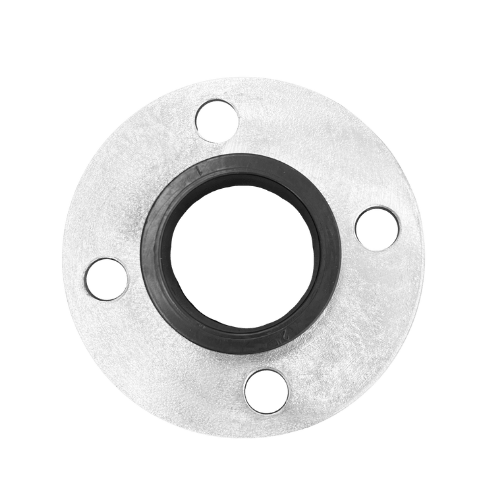

The uPVC Stub Flange Kit is a high pressure uPVC flange that comes with a Galvanised Steel Backing Ring with multiple drill patterns that is predominately used to attach pipe to a bolted fitting. The uPVC Stub Flange Kit has a uPVC Stub Flange and a Galvanised Steel Backing Ring that is compatible with Table D and Table E drill patterns. *Please note that not all sizes are compatible with both standards. Please check with Fusion Qld Sales Staff on compatibility and more detailed information on drill patterns.
The uPVC Stub Flange Kit varies in sizes from 50mm – 375mm.
| Stub Flange Size | Backing Ring Description | PN Rating | Code |
| 50mm | 2" Galvanised Steel Backing Ring Table D/E | PN16 | TFLRK050 |
| 65mm | 2 1/2" Galvanised Steel Backing Ring Table D/E | PN16 | TFLRK065 |
| 80mm | 3" Galvanised Steel Backing Ring Table D/E | PN16 | TFLRK080 |
| 100mm | 4" Galvanised Steel Backing Ring Table D | PN16 | TFLRK100D |
| 100mm | 4" Galvanised Steel Backing Ring Table E | PN16 | TFLRK100E |
| 150mm | 6" Galvanised Steel Backing Ring Table D | PN16 | TFLRK150D |
| 150mm | 6" Galvanised Steel Backing Ring Table E | PN16 | TFLRK150E |
| 200mm | 8" Galvanised Steel Backing Ring Table D | PN16 | TFLRK200 |
| 225mm | 10" Galvanised Steel Backing Ring Table D | PN16 | TFLRK225D |
| 225mm | 10" Galvanised Steel Backing Ring Table E | PN16 | TFLRK225E |
| 250mm | 10" Galvanised Steel Backing Ring Table D | PN16 | TFLRK250D |
| 250mm | 10" Galvanised Steel Backing Ring Table E | PN16 | TFLRK250E |
| 300mm | 12" Galvanised Steel Backing Ring Table D | PN16 | TFLRK300 |
| 375mm | 16" Galvanised Steel Backing Ring Table D/E | PN16 | TFLRK375 |
The uPVC Stub Flange with Galvanised Steel Backing Ring Kit is available Nationwide from both our Queensland and Victorian locations.
To learn more or to purchase this product, contact us today.
